GCP Pub/Sub Integration Guide

This guide will show you how to integrate Google Cloud Platform (GCP) Pub/Sub with the Secure60 platform. GCP Pub/Sub is a messaging service that allows you to send and receive messages between independent applications. This integration enables you to collect and analyze GCP audit logs and other event data in real-time through Secure60.

Overview

This guide will explain how to configure the Secure60 Collector to pull data from GCP Pub/Sub subscriptions. The integration automatically normalizes GCP event data into the Secure60 Common Information Model (CIM) format, making it easy to analyze and correlate with other security data sources.

Prerequisites

1. A GCP project with Pub/Sub enabled
2. A GCP service account with Pub/Sub subscription access
3. A Secure60 Collector instance (see Secure60 Collector documentation)
4. GCP service account credentials JSON file

Configuration Steps

1. Set Up GCP Service Account

   • Create a service account in your GCP project
   • Grant the service account the following roles:
     • roles/pubsub.subscriber
     • roles/pubsub.viewer
   • Generate and download the service account key (JSON format)

2. Configure Secure60 Collector

   Add the following environment variables to your Secure60 Collector .env file:

   GCP_PUBSUB_CREDENTIAL_PATH=/path/to/your/credentials.json
   GCP_PUBSUB_PROJECT=your-gcp-project-id
   GCP_PUBSUB_SUBSCRIPTION=your-subscription-id


   Where:

   • GCP_PUBSUB_CREDENTIAL_PATH: Path to your GCP service account credentials JSON file (Details below on how to map this file into the Secure60 Collector container and reference) OR Preferred: Provide an API Key as the value
   • GCP_PUBSUB_PROJECT: Your GCP project ID
   • GCP_PUBSUB_SUBSCRIPTION: The ID of your Pub/Sub subscription

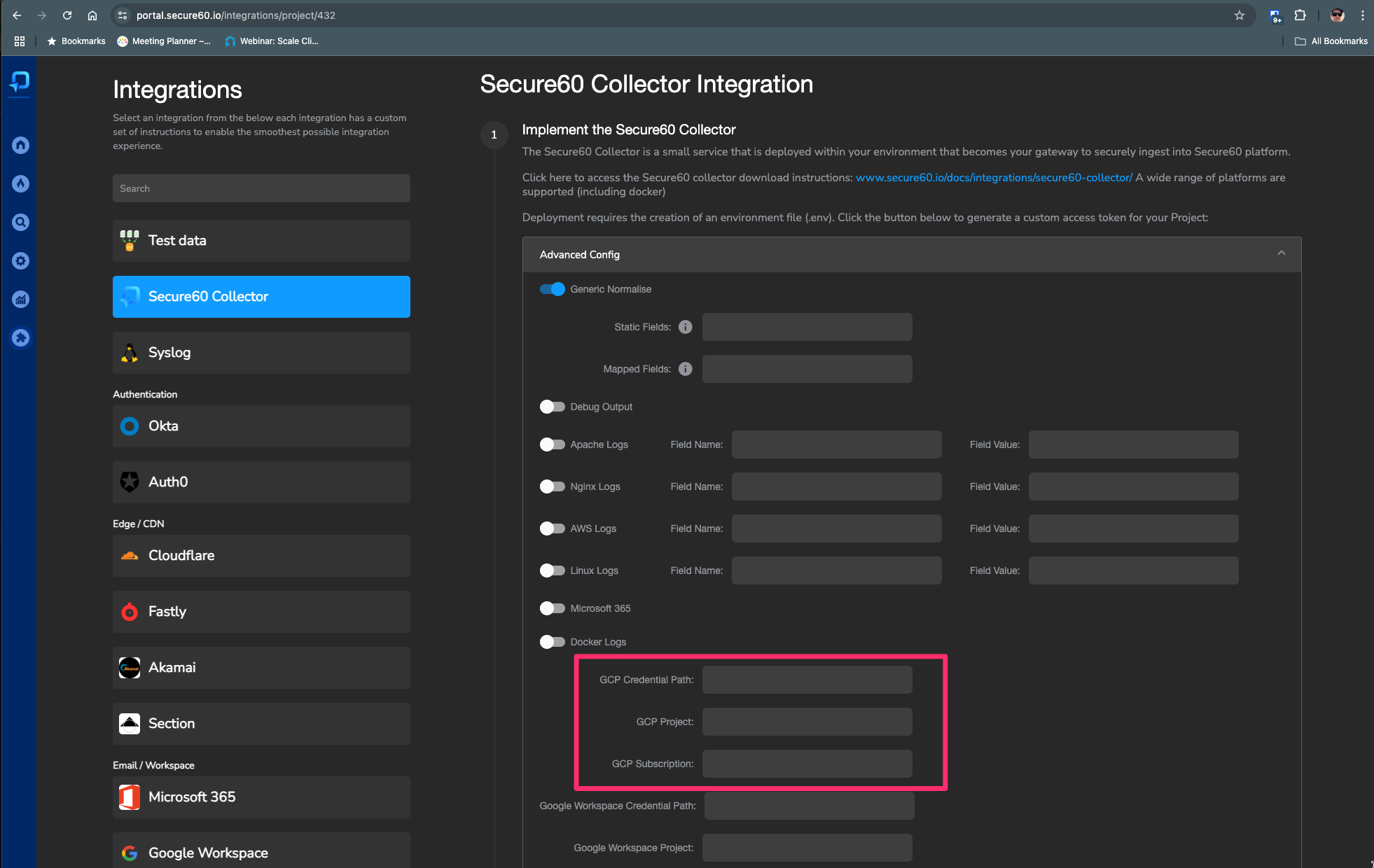

The Secure60 Portal Integrations page provides an intuitive UI to configure GCP Pub/Sub integration. You can enter your GCP Credential Path, Project, and Subscription directly in the portal, which will generate the correct environment variables for your collector deployment.

3. Deploy the Collector

   If using Docker, mount the credentials file and update your run command:

   docker run -i --name s60-collector \
     -v /path/to/your/credentials.json:/etc/vector/gcp-credentials.json \
     -p 80:80 -p 443:443 -p 514:514 -p 6514:6514 \
     --rm -d --env-file .env secure60/s60-collector:1.07


   Or using Docker Compose:

   services:
     s60-collector:
       image: "secure60/s60-collector:1.07"
       volumes:
         - /path/to/your/credentials.json:/etc/vector/gcp-credentials.json
       ports:
         - "443:443"
         - "80:80"
         - "514:514"
         - "6514:6514"
       env_file:
         - .env


Data Normalization

The Secure60 Collector automatically normalizes GCP Pub/Sub events into the Secure60 Common Information Model. This includes:

• Event timestamps
• User authentication information
• Resource access details
• API operations
• Source and destination information
• Error messages and status codes

Verification

To verify the integration is working:

1. Check the Secure60 Collector logs:

   docker logs s60-collector


2. View events in the Secure60 Portal:

   • Navigate to the Search page
   • Filter for events with vendor="google" and product="GPC"

Troubleshooting

Common issues and solutions:

1. Authentication Errors

   • Verify the service account credentials file path is correct
   • Ensure the service account has the necessary permissions
   • Check the credentials file is properly mounted in the container

2. Connection Issues

   • Verify the GCP project ID is correct
   • Ensure the subscription ID exists and is accessible
   • Check network connectivity to GCP services

3. Data Not Appearing

   • Verify events are being published to the subscription
   • Check the Secure60 Collector logs for any transformation errors
   • Ensure the subscription is active and has messages

For additional assistance, contact Secure60 Support at support@secure60.io
